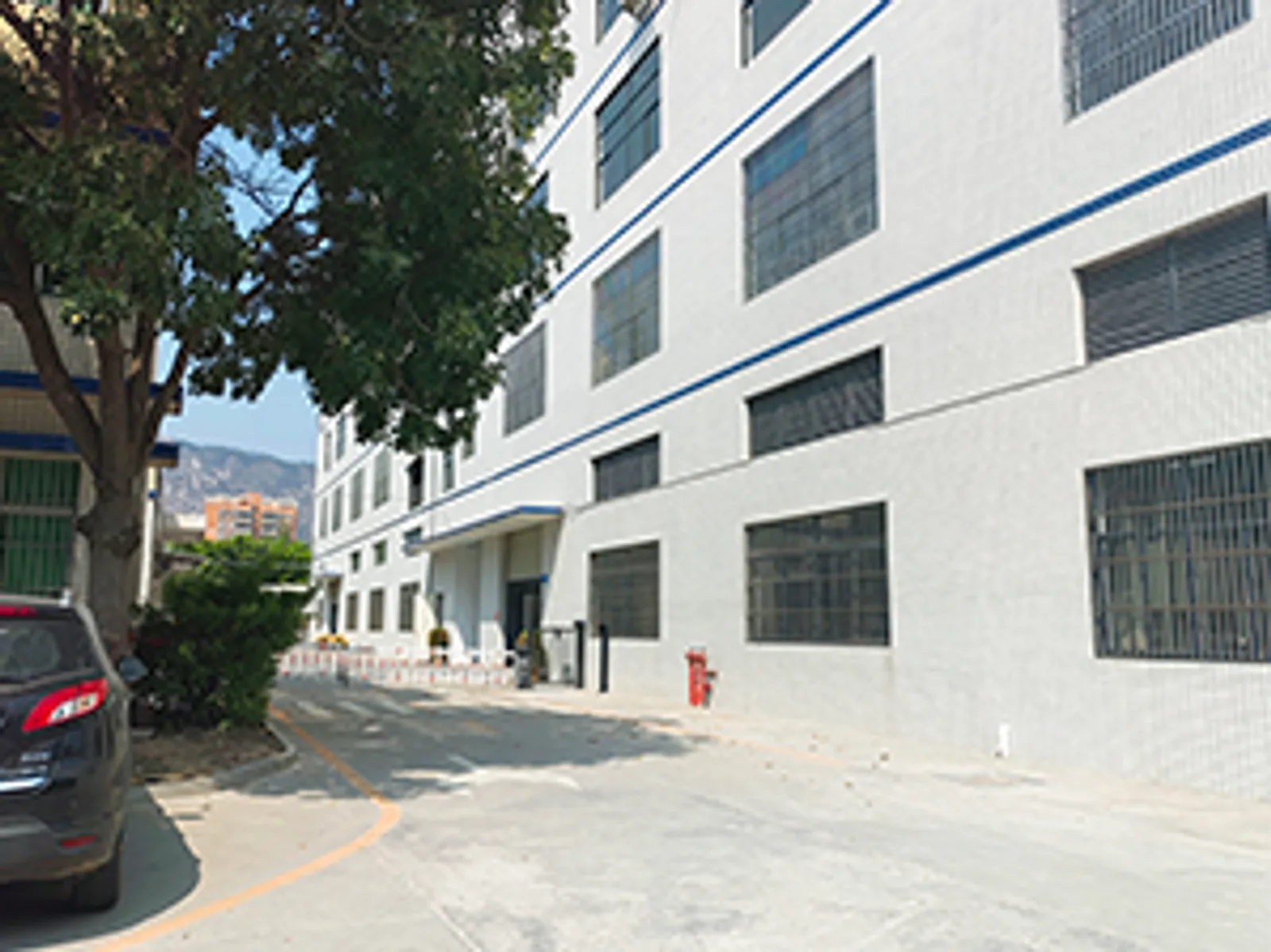

Heyuan · Guangdong · China
One factory floor. Every wheel we sell is made here.
ArcTung is the export channel of a manufacturer founded in 2005 — among the earliest tungsten-copper producers in China. Powders in on Monday, your wheels on a truck in under two weeks.
2005
Founded (ex-state powder-metallurgy plant)
80,000 kg
Monthly tungsten-copper capacity
88
Granted patents
10+
Countries already supplied
Credentials
Certified where it counts
Government-verified innovation and specialization credentials, current and auditable. Certificate copies are included in our due-diligence pack on request.
National High-Tech Enterprise
Issued 2025 batch · valid through Dec 2028
MIIT-linked innovation certification, awarded after R&D spend and IP audits.
Guangdong "Specialized & Sophisticated" SME
Re-approved Feb 2026 · valid through Feb 2029
Provincial recognition for niche-market manufacturers with proven IP.
Science & Technology SME
National registration
Ongoing R&D program with ~6% of revenue reinvested annually.
88 granted patents
Forging · machining · materials
Including tungsten-copper rod forging equipment and process patents.
How wheels are made
From powder to finished wheel, in-house
Pressing, sintering and infiltration happen under one roof; finish machining runs on our own 15-lathe cell. Nothing is subcontracted.
-
01
Powder & mixing
Tungsten powder blended with copper binder in 3-D mixers, weighed per batch record.
-
02

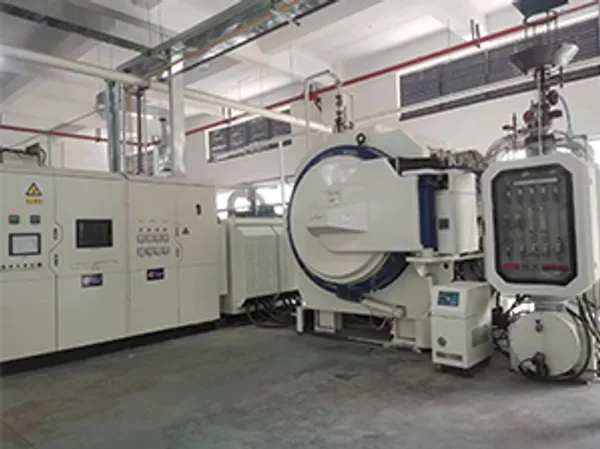

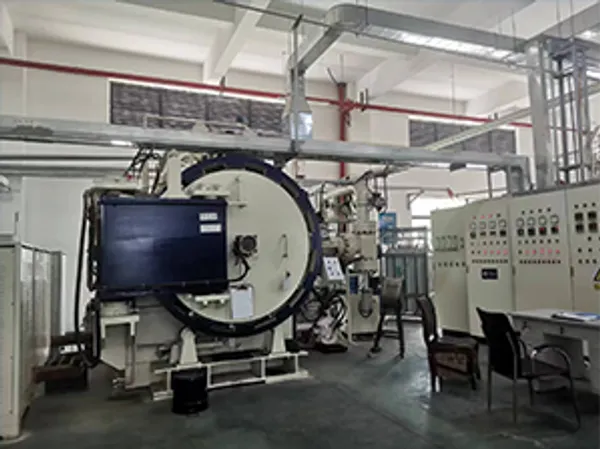

Pressing & sintering
Cold isostatic pressing to near-net shape, then high-temperature sintering in vacuum furnaces.
-
03

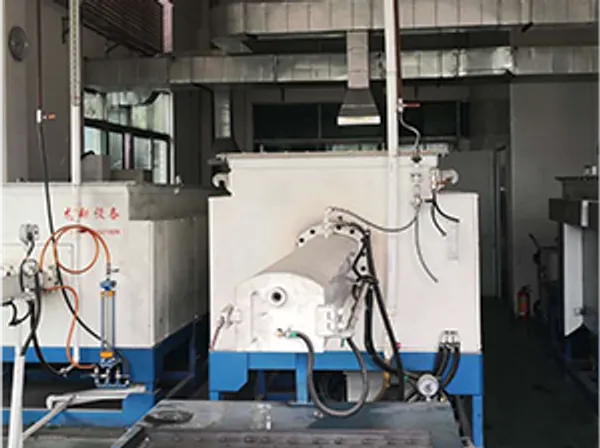

Copper infiltration
Molten copper infiltrates the tungsten skeleton — the heart of the W/Cu composite.
-
04
Machining & QC
Turned, milled and ground to 0.02 mm runout; composition, density and hardness verified per batch.
Quality control
Every batch, on the record
- Chemical composition analysis
- Density measurement
- Hardness testing
- Electrical conductivity
- Tensile strength
- Metallographic examination
Tests run per batch and per customer specification; inspection records accompany every shipment. ASTM B702-compliant third-party testing is available on request (~2 weeks, quoted with your order).
Batch traceability: each wheel carries a batch code that maps back to powder lot, furnace run and inspection record.
Equipment park
What's on the floor
| 3-D powder mixers | 15 |
| Cold isostatic presses | 12 |
| High-temp sintering furnaces | 8 |
| Copper infiltration furnaces | 8 |
| Lathes | 15 |
| Milling machines | 2 |
| Grinding machines | 5 |

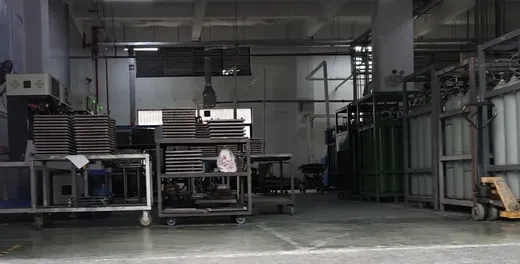

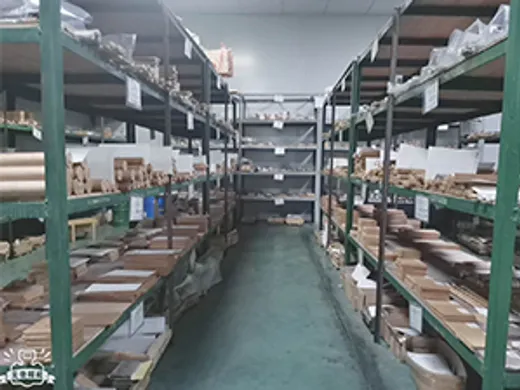

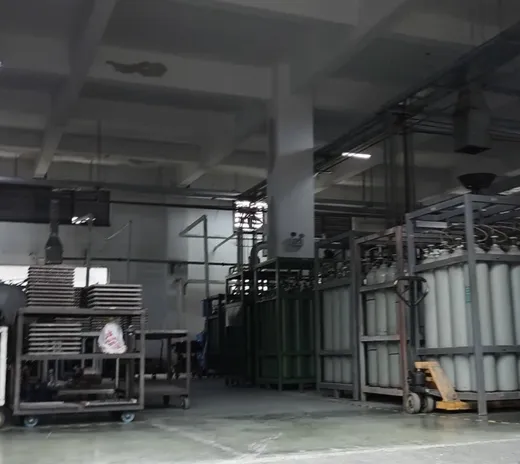

On site
The plant, unedited
Photographed on the production floor — no stock images anywhere on this site.

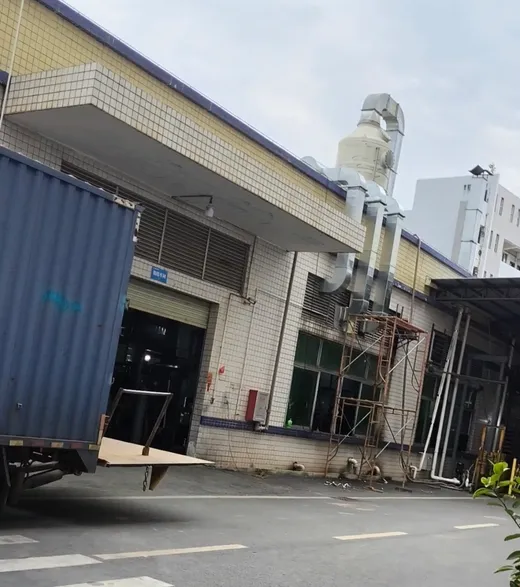

Export packing: vacuum bag + foam lining, carton or wooden crate, ≤ 24 kg per box · FOB Shenzhen / Nansha
Want the due-diligence pack?
Business license, credential certificates, equipment list, QC flow — English, on request.
